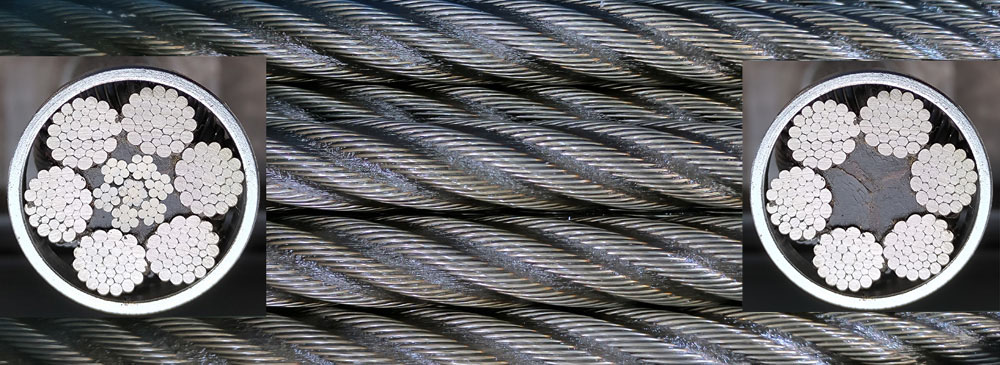

6x36WS is a classic and widely used carbon steel wire rope structure, belonging to the line contact wire rope category. Its ingenious design balances abrasion resistance and flexibility, making it ideal for many heavy-duty and frequent-operation applications.
Widely Used in Various Heavy Machinery and Important Applications:
Port Machinery: Such as gantry cranes, quay cranes, yard cranes, container handling machinery, etc.
Mining Equipment: Lifting ropes and tension ropes for electric shovels, mine hoisting.
Large lifting mechanisms: Used for the main and auxiliary lifting ropes of large cranes and crawler cranes.
Marine and marine engineering: Used for ship loading and unloading, tugboat mooring lines, and offshore replenishment.
Oil drilling: Used as a key load-bearing component in drilling equipment.
Other heavy machinery: Such as excavators, rotary drilling rigs, and hydraulic machinery (gate hoists).
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1770 | 1960 | 2160 | ||
| 8 | 24.3 | 37.4 | 41.4 | 45.6 |
| 9 | 30.8 | 47.3 | 52.4 | 57.7 |
| 9.53 | 34.5 | 53.0 | 58.7 | 64.7 |
| 10 | 38.0 | 58.4 | 64.7 | 71.3 |
| 11 | 46.0 | 70.7 | 78.3 | 86.2 |
| 12 | 54.7 | 84.1 | 93.1 | 103 |
| 12.7 | 61.3 | 94.2 | 104 | 115 |
| 13 | 64.2 | 98.7 | 109 | 120 |
| 14 | 74.5 | 114 | 127 | 140 |
| 14.3 | 77.7 | 119 | 132 | 146 |
| 15.9 | 96.1 | 148 | 164 | 180 |
| 16 | 97.3 | 150 | 166 | 182 |
| 18 | 123 | 189 | 210 | 231 |
| 20 | 152 | 234 | 259 | 285 |
| 22 | 184 | 283 | 313 | 345 |
| 22.2 | 187 | 288 | 319 | 351 |
| 24 | 219 | 336 | 373 | 411 |
| 25.4 | 245 | 377 | 417 | 460 |
| 26 | 257 | 395 | 437 | 482 |
| 28 | 298 | 458 | 507 | 559 |
| 28.6 | 311 | 478 | 529 | 583 |
| 30 | 342 | 526 | 582 | 642 |
| 32 | 389 | 598 | 662 | 730 |
| 36 | 492 | 757 | 838 | 924 |
| 40 | 608 | 935 | 1030 | 1140 |
| 44 | 736 | 1130 | 1250 | 1380 |
| 48 | 876 | 1350 | 1490 | 1640 |
| 52 | 1030 | 1580 | 1750 | 1930 |
| 56 | 1190 | 1830 | 2030 | 2240 |
| 60 | 1370 | 2100 | 2330 | 2570 |
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1770 | 1960 | 2160 | ||
| 8 | 26.8 | 40.3 | 44.7 | 49.2 |
| 9 | 33.9 | 51.0 | 56.5 | 62.3 |
| 9.53 | 38.0 | 57.2 | 63.4 | 69.8 |
| 10 | 41.8 | 63.0 | 69.8 | 76.9 |
| 11 | 50.6 | 76.2 | 84.4 | 93.0 |
| 12 | 60.2 | 90.7 | 100 | 111 |
| 12.7 | 67.4 | 101.6 | 113 | 124 |
| 13 | 70.6 | 106 | 118 | 130 |
| 14 | 81.9 | 124 | 137 | 151 |
| 14.3 | 85.5 | 129 | 143 | 157 |
| 15.9 | 106 | 159 | 176 | 194 |
| 16 | 107 | 161 | 179 | 197 |
| 18 | 135 | 204 | 226 | 249 |
| 19 | 151 | 227 | 252 | 278 |
| 20 | 167 | 252 | 279 | 308 |
| 22 | 202 | 305 | 338 | 372 |
| 22.2 | 206 | 311 | 344 | 379 |
| 24 | 241 | 363 | 402 | 443 |
| 25.4 | 270 | 407 | 450 | 496 |
| 26 | 283 | 426 | 472 | 520 |
| 28 | 328 | 494 | 547 | 603 |
| 28.6 | 342 | 515 | 571 | 629 |
| 30 | 376 | 567 | 628 | 692 |
| 32 | 428 | 645 | 715 | 787 |
| 36 | 542 | 817 | 904 | 997 |
| 40 | 669 | 1010 | 1120 | 1230 |
| 44 | 809 | 1220 | 1350 | 1490 |
| 48 | 963 | 1450 | 1610 | 1770 |
| 52 | 1130 | 1700 | 1890 | 2080 |
| 56 | 1310 | 1980 | 2190 | 2410 |
| 60 | 1500 | 2270 | 2510 | 2770 |
