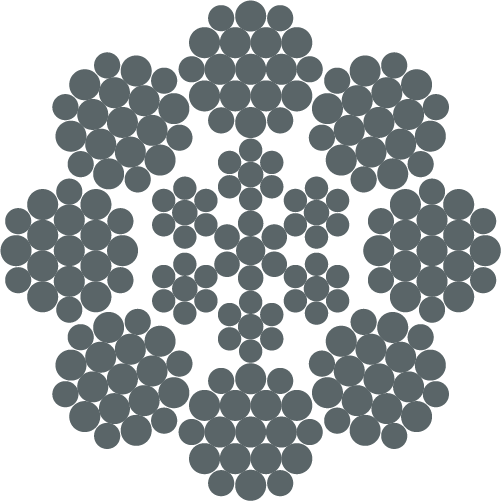

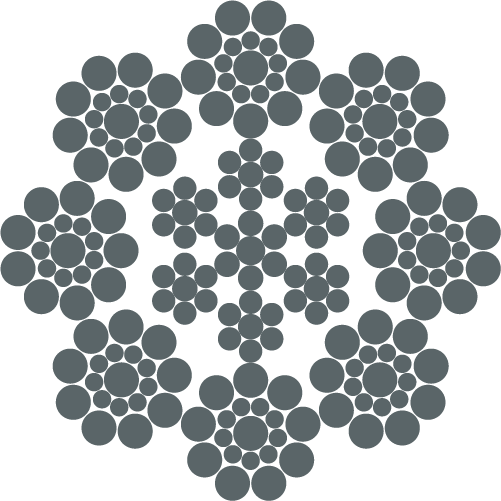

8×19S-IWRC(7×7) | 8×19W-IWRC(7×7)
Field of Application
Designed for villa elevator and MRL elevator
Diameter
(mm)
Approx.
weight
(kg/100m)
Minimum breaking force (kN)
1570
1770
1770 HP
6
14.8
21.6
24.3
25.9
6.5
17.4
25.3
28.6
31.5
