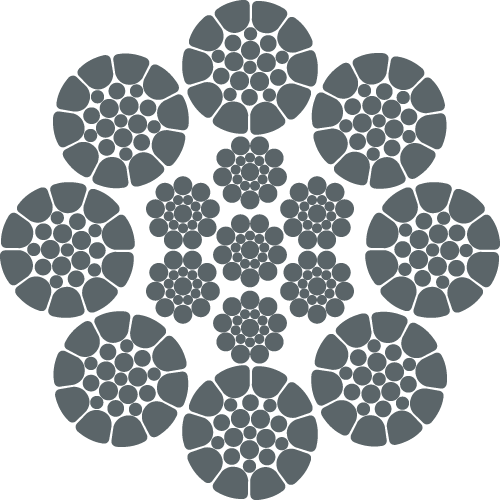

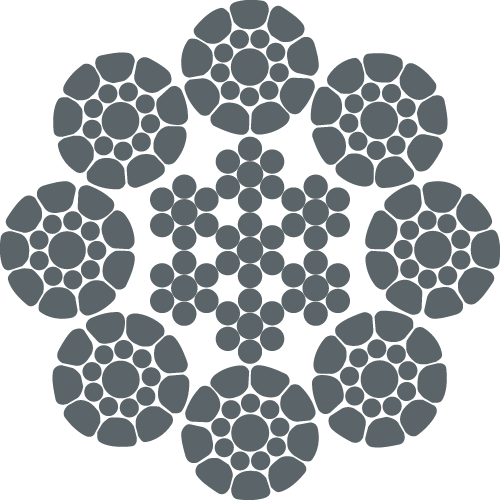

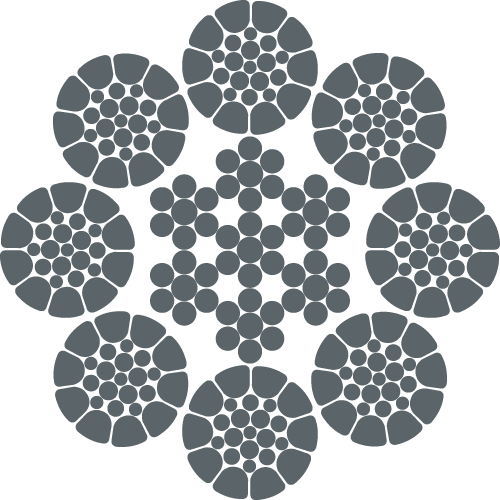

Bridge crane, gantry crane, vehicle crane, port RTG crane, JIB crane etc. Compacted strand 8×K19 and 8×K26 has higher minimum breaking force and better wear resistance than round strand rope.
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1770 | 1960 | 2160 | ||
| 8 | 31.0 | 47.0 | 52.1 | 57.4 |
| 9 | 39.3 | 59.5 | 65.9 | 72.6 |
| 10 | 48.5 | 73.5 | 81.3 | 89.6 |
| 11 | 58.7 | 88.9 | 98.4 | 108 |
| 12 | 69.8 | 106 | 117 | 129 |
| 13 | 82.0 | 124 | 137 | 151 |
| 14 | 95.1 | 144 | 159 | 176 |
| 16 | 124 | 188 | 208 | 229 |
| 18 | 157 | 238 | 264 | 290 |
| 20 | 194 | 294 | 325 | 359 |
| 22 | 235 | 356 | 394 | 434 |
| 24 | 279 | 423 | 469 | 516 |
| 26 | 328 | 497 | 550 | 606 |
| 28 | 380 | 576 | 638 | 703 |
| 30 | 437 | 661 | 732 | 807 |
| 32 | 497 | 752 | 833 | 918 |
| 36 | 629 | 952 | 1050 | 1160 |
| 40 | 776 | 1180 | 1300 | 1430 |
